2003711-100F
Networking Cable, ASi-BUS, Unshielded, 16 AWG, 1.5 mm², 100 ft, 30.48 m

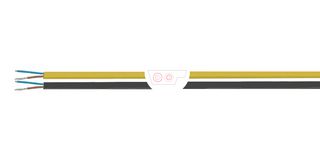

Image is for illustrative purposes only. Please refer to product description.
1 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
View cut-off times
| Quantity | Price |
|---|---|
| 1+ | $200.340 |
| 5+ | $192.330 |
| 10+ | $184.320 |
Price for:Spool of 100
Minimum: 1
Multiple: 1
$200.34
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTKD KABEL
Manufacturer Part No2003711-100F
Newark Part No.13AM8036
Technical Datasheet
Cable ShieldingUnshielded
Wire Gauge16AWG
Conductor Area CSA1.5mm²
Reel Length (Imperial)100ft
Reel Length (Metric)30.48m
Jacket ColorYellow
No. of Max Strands x Strand Size84 x 34AWG
Voltage Rating300V
Jacket MaterialPVC
Conductor MaterialTinned Copper
External Diameter-
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
2003711-100F is a fieldbus cables for ASi (Actuator Sensor Interface) systems used in the field of factory automation, for connecting devices to the lowest field level (sensors, actuators), for fixed installation & flexible applications. Data and energy are transmitted via an unscreened, geometrically coded two-core flat cable.
- Standard according to EN 50295 / IEC 62026
- Yellow PVC cable
- 2 conductor 16AWG (1.5mm²) size
- Largely resistant to grease, coolant fluids and lubricants
- Oil-resistant: acc. to DIN EN 60811-2-1 (mineral oil)
- Special geometry prevents incorrect contacting (reverse polarity protection)
- Simple & quick tool-free installation (piercing technology)
- UL/CSA types : cULus 300V, 90°C, CMG approvals
- 100ft (30.48m) cable length
Technical Specifications
Cable Shielding
Unshielded
Conductor Area CSA
1.5mm²
Reel Length (Metric)
30.48m
No. of Max Strands x Strand Size
84 x 34AWG
Jacket Material
PVC
External Diameter
-
SVHC
No SVHC (27-Jun-2024)
Wire Gauge
16AWG
Reel Length (Imperial)
100ft
Jacket Color
Yellow
Voltage Rating
300V
Conductor Material
Tinned Copper
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
