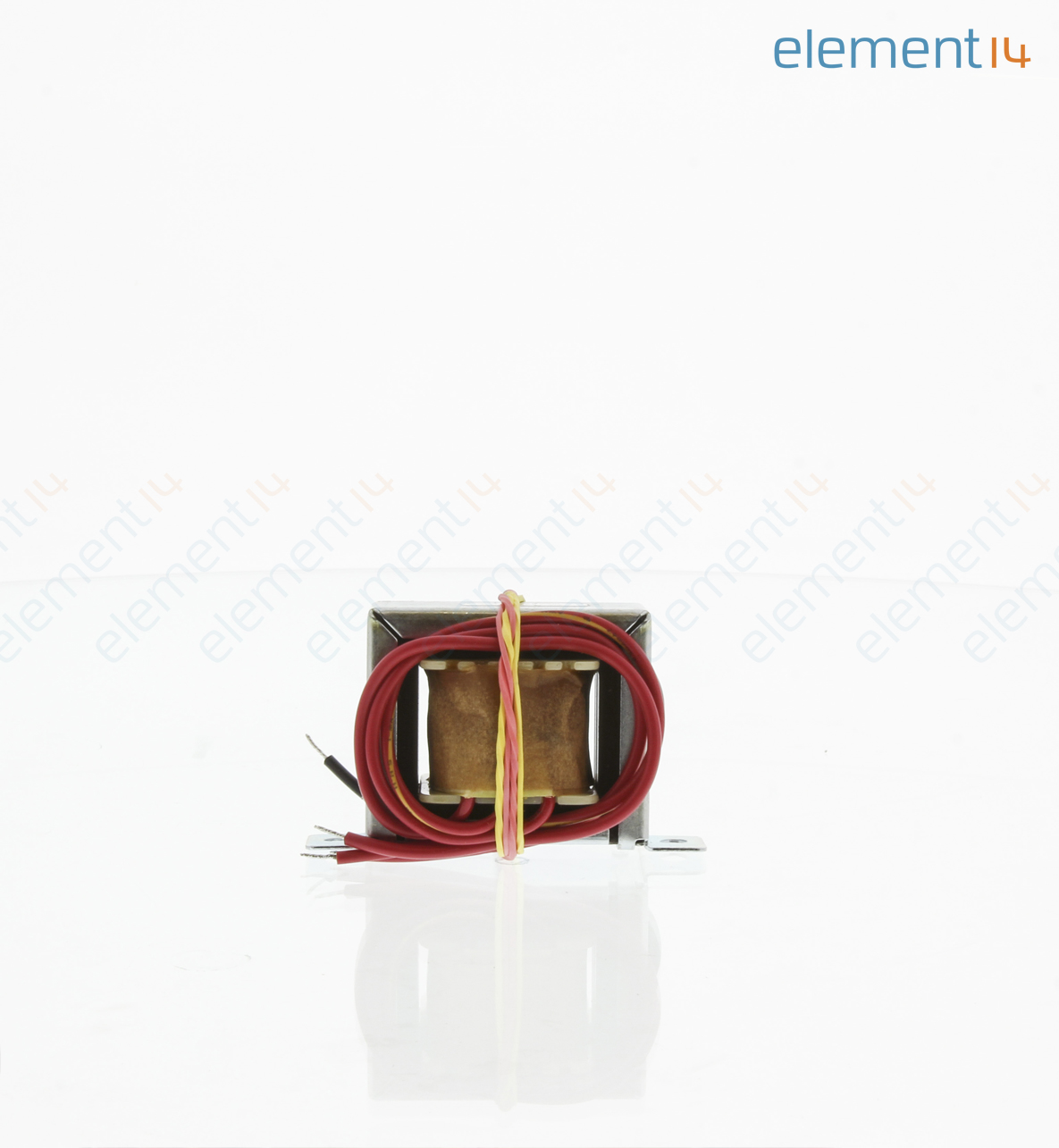

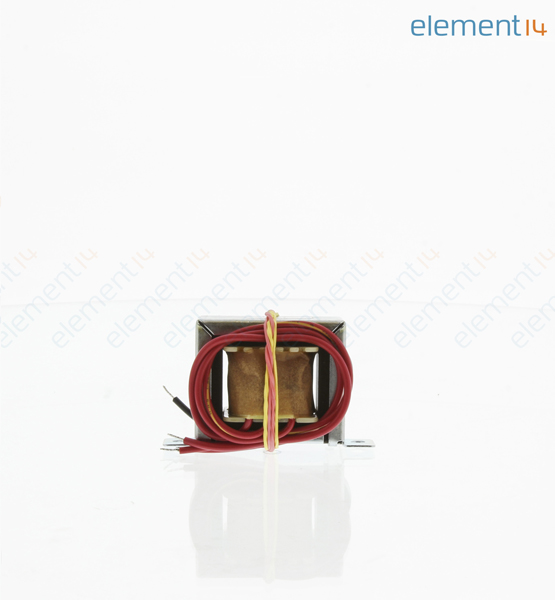

TRIAD MAGNETICS F-117X
Chassis Mount Transformer, Isolating, 115V, 24V, 9.6 VA, 50Hz / 60Hz
Date/Lot Code
- Manufacturer:
- TRIAD MAGNETICS TRIAD MAGNETICS
- Manufacturer Part No:
- F-117X
- Newark Part No.:
- 03F1011
- Product Range
- F Series
- Technical Datasheet:
- F-117X Datasheet
- ECAD / MCAD
-
Product Range Selector (F Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Isolating
- :
- 9.6VA
- :
- 24V
- :
- 115V
- :
- 400mA
- :
- 50Hz / 60Hz
- :
- Single Primary, Single Secondary
- :
- Wire Leaded
- :
- 1.5kV
- :
- F Series
Technical Documents (4)
Product Overview
The F-117X is a 9.6VA single secondary chassis-mount Power Transformer with wound on a single channel nylon bobbin and the materials are UL recognized, Class B (130°C) rated. This transformer offers a full choice of power supply for direct use in transformer, rectifier or filter circuits. Other available secondary voltages include control, filament and low level signaling in standard values. The transformer is single primary with single and multiple secondary in standard size and weight configurations and 100% hipot tested with an insulation of 1500V between primary and secondary windings as well as between the primary/secondary windings and the core. The connections are made through leads.
- 50 to 60Hz Frequency range
Applications
Power Management
