Print Page
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
| Quantity | Price |
|---|---|
| 1+ | $238.830 |
| 5+ | $203.680 |
| 10+ | $195.410 |
| 25+ | $186.100 |
| 50+ | $170.600 |
| 100+ | $146.820 |
Price for:Each
Minimum: 1
Multiple: 1
$238.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTRUMETER
Manufacturer Part No7-2215
Newark Part No.27B4592
Product Range22 Series
Technical Datasheet
No. of Digits / Alpha5
Digit Height5mm
Supply Voltage Min-
Supply Voltage Max-
Panel Cutout Height-
Panel Cutout Width-
Operating Temperature Min-26°C
Operating Temperature Max60°C
Product Range22 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview

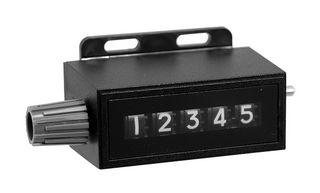

22 series mechanical rotary counter is a compact, 5 figure, rotary counter, indicating 10 counts/revolution. Design and compact size make it ideally suited for office and test equipment, coin counting and other direct reading instruments. Applications include production equipment, spooling and positioning.
- Left-hand, top-coming, add and subtract
- Reliable, long life
- 5 figures, white on black, 0.19’’ [5mm] high
- Knob reset, 500 revolutions/minute speed,
- 49° minimum- 60° maximum count stroke
- 0.125’’ (3.2mm) shaft diameter
- Operating life beyond 10 million counts
- Temperature range from -15°F to +140°F (-26°C to +60°C)
Technical Specifications
No. of Digits / Alpha
5
Supply Voltage Min
-
Panel Cutout Height
-
Operating Temperature Min
-26°C
Product Range
22 Series
Digit Height
5mm
Supply Voltage Max
-
Panel Cutout Width
-
Operating Temperature Max
60°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
