2191QL5-24V
LED Panel Mount Indicator, Green, 24 V, 7.87 mm, Not Rated
.jpg){kind=logo}
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL5-24V
Newark Part No.16M0460
Technical Datasheet
210 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $11.760 |
| 10+ | $8.510 |
| 25+ | $8.050 |
| 50+ | $7.610 |
| 100+ | $7.150 |
| 300+ | $6.650 |
| 500+ | $6.150 |
Price for:Each
Minimum: 1
Multiple: 1
$11.76
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No2191QL5-24V
Newark Part No.16M0460
Technical Datasheet
LED ColorGreen
Operating Voltage24V
Mounting Hole Dia7.87mm
Forward Current If-
Luminous Intensity-
IP / NEMA RatingNot Rated
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview

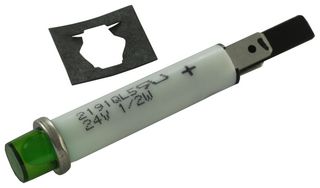

The 2191QL5-24V is a 24V non-relampable solid-state green LED Indicator Light complete with 1000Ω built-in current-limiting resistor and rectifier diode. The green lens incorporates 4304H5 LED. The 2191QL series LED indicator with 0.310-inch mounting hole and 0.187 x 0.020-inch tinned brass quick-connect terminals. Lens is made of polycarbonate with polished stainless steel bezel and white nylon housing.
- Anode(+) Marked above terminal
Applications
LED Lighting
Technical Specifications
LED Color
Green
Mounting Hole Dia
7.87mm
Luminous Intensity
-
Product Range
-
Operating Voltage
24V
Forward Current If
-
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
