R681-2
Card Edge Connector, Dual Side, 100 Contacts, Panel Mount, Straight

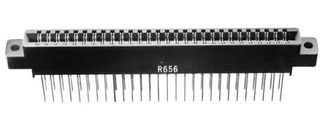

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVECTOR ELECTRONICS
Manufacturer Part NoR681-2
Newark Part No.65F699
Product RangeR600 Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerVECTOR ELECTRONICS
Manufacturer Part NoR681-2
Newark Part No.65F699
Product RangeR600 Series
Technical Datasheet
Card Edge Connector TypeDual Side
No. of Contacts100Contacts
Card Thickness-
No. of Contacts100 Contacts
Pitch Spacing3.18mm
Connector MountingPanel Mount
Connector Body OrientationStraight
Contact Termination TypeWire Wrap
No. of Rows2Rows
Contact MaterialPhosphor Bronze
Contact Plating - Mating Side10µ" Gold Plated Contacts
Connector Body MaterialPhenolic Body
Product RangeR600 Series
SVHCNo SVHC (08-Jul-2021)
Technical Specifications
Card Edge Connector Type
Dual Side
Card Thickness
-
Pitch Spacing
3.18mm
Gender
Receptacle
Contact Termination Type
Wire Wrap
Contact Material
Phosphor Bronze
Connector Body Material
Phenolic Body
SVHC
No SVHC (08-Jul-2021)
No. of Contacts
100Contacts
No. of Contacts
100 Contacts
Connector Mounting
Panel Mount
Connector Body Orientation
Straight
No. of Rows
2Rows
Contact Plating - Mating Side
10µ" Gold Plated Contacts
Product Range
R600 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (08-Jul-2021)
