0799984-322
Totalizer, Compact, MicroMITE Series, 4 Digits, Panel Mount, Battery Powered

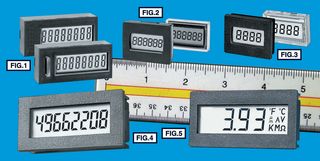

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVEEDER ROOT
Manufacturer Part No0799984-322
Newark Part No.48F2125
Product RangeMICROMITE Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 1+ | $162.700 |
| 5+ | $147.410 |
| 10+ | $144.630 |
| 25+ | $140.450 |
| 50+ | $133.500 |
| 100+ | $120.290 |
| 250+ | $111.260 |
Price for:Each
Minimum: 1
Multiple: 1
$162.70
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVEEDER ROOT
Manufacturer Part No0799984-322
Newark Part No.48F2125
Product RangeMICROMITE Series
Technical Datasheet
No. of Digits / Alpha4
Digit Height6mm
Supply Voltage Min-
Supply Voltage Max18VDC
Panel Cutout Height22mm
Panel Cutout Width45mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Product RangeMICROMITE Series
SVHCTo Be Advised
Product Overview
The 0799984-322 is a 4-digit ultra-compact self powered Totalizing Counter with button battery. It is made up of clear polycarbonate body and black ABS bezel. It is suitable for use with the printed circuit board mounting. It is typically supporting memory and operation for 3 to 4 years. An integral switch-bounce filter allows error free counting from the mechanical contacts of switches or relays. PCB solder-pins are provided for electrical connections. An attractive panel-mount installation can be made using the provided bezel.
- Integral switch-debounce circuitry
- IP40 Protection rating
- 0 to 85°C Operating temperature range
Applications
Automation & Process Control
Technical Specifications
No. of Digits / Alpha
4
Supply Voltage Min
-
Panel Cutout Height
22mm
Operating Temperature Min
0°C
Product Range
MICROMITE Series
Digit Height
6mm
Supply Voltage Max
18VDC
Panel Cutout Width
45mm
Operating Temperature Max
50°C
SVHC
To Be Advised
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:To Be Advised
