1N4154-TR
Small Signal Diode, 35 V, 300 mA, 1 V, 4 ns, 2 A

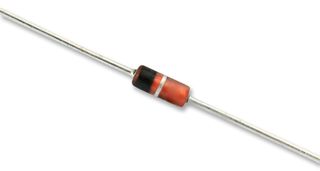

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part No1N4154-TRCopy
Manufacturer Standard Lead Time6 weeks
Newark Part No.
Full Reel33C2686
Cut Tape05W7033
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 50000 | $0.070 | $3,500.00 |
| Total Price | $3,500.00 | ||
Cut Tape
| Quantity | Price |
|---|---|
| 50000+ | $0.070 |
| 100000+ | $0.068 |
| 150000+ | $0.067 |
| 250000+ | $0.065 |
| 500000+ | $0.064 |
| 1250000+ | $0.063 |
| 2500000+ | $0.061 |
| 5000000+ | $0.060 |
Full Reel
| Quantity | Price |
|---|---|
| 50000+ | $0.061 |
| 100000+ | $0.060 |
| 150000+ | $0.058 |
| 250000+ | $0.057 |
| 500000+ | $0.055 |
| 1250000+ | $0.054 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVISHAY
Manufacturer Part No1N4154-TRCopy
Manufacturer Standard Lead Time6 weeks
Newark Part No.
Full Reel33C2686
Cut Tape05W7033
Technical Datasheet
Repetitive Peak Reverse Voltage35V
Average Forward Current300mA
Forward Voltage Max1V
Reverse Recovery Time4ns
Forward Surge Current2A
Operating Temperature Max175°C
Diode Case StyleDO-204AH
No. of Pins2Pins
Product Range-
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Repetitive Peak Reverse Voltage
35V
Forward Voltage Max
1V
Forward Surge Current
2A
Diode Case Style
DO-204AH
Product Range
-
Average Forward Current
300mA
Reverse Recovery Time
4ns
Operating Temperature Max
175°C
No. of Pins
2Pins
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
