DG413DY-E3

Analog Switch, Quad Channel, 4 Channels, SPST, 40 ohm, ± 13.5V to ± 16.5V, SOIC, 16 Pins

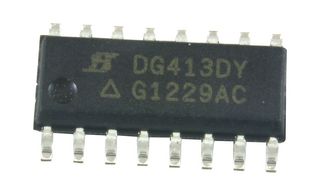

VISHAY DG413DY-E3

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
VISHAY VISHAY
Manufacturer Part No:
DG413DY-E3
Newark Part No.:
49K9590
Technical Datasheet:
DG413DY-E3   Datasheet
See all Technical Docs

Product Overview

The DG413DY-E3 is a single-pole single-throw (SPST) precision monolithic quad CMOS Analog Switch designed to provide high speed, low error switching of precision analog signals. Combining low power (0.35µW) with high speed (tON - 110ns). To achieve high-voltage ratings and superior switching performance, it is built on Siliconix’s high voltage silicon gate process. An epitaxial layer prevents latch-up. Each switch conducts equally well in both directions when on and blocks input voltages up to the supply levels when off. The DG413 has two normally open and two normally closed switches.
  • Halogen-free according to IEC 61249-2-21 definition
  • TTL/CMOS Compatible
  • Single supply capability
  • Widest dynamic range
  • Low signal errors and distortion
  • Break-before-make switching action
  • Simple interfacing
  • Fast switching

Applications

Industrial, Test & Measurement, Communications & Networking, Power Management, Computers & Computer Peripherals, Defence, Military & Aerospace

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4Channels

:
SPST

:
40ohm

:
± 13.5V to ± 16.5V

:
SOIC

:
16Pins

:
-40°C

:
85°C

:
-

:
-

:
-
Find similar products Choose and modify the attributes above to find similar products.
