MAL214631102E3
Electrolytic Capacitor, 146 RTI Series, 1000 µF, 50 V, ± 20%, Radial Leaded, 2000 hours @ 105°C

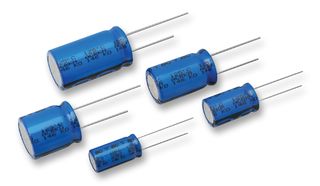

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoMAL214631102E3
Newark Part No.74R4354
Product Range146 RTI Series
Technical Datasheet
272 In Stock
Need more?
25 Delivery in 1-3 Business Days(US stock)
247 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $7.130 |
| 10+ | $4.350 |
| 25+ | $4.190 |
| 50+ | $4.020 |
| 100+ | $3.850 |
| 500+ | $3.590 |
| 1000+ | $3.420 |
| 2500+ | $3.340 |
Price for:Each
Minimum: 1
Multiple: 1
$7.13
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoMAL214631102E3
Newark Part No.74R4354
Product Range146 RTI Series
Technical Datasheet
Capacitance1000µF
Voltage(DC)50V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature4000 hours @ 125°C
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing7.5mm
Product Diameter18mm
Product Length-
Product Width-
Product Height20mm
Product Range146 RTI Series
ESR-
Ripple Current1.8A
Operating Temperature Min-55°C
Operating Temperature Max125°C
QualificationAEC-Q200
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 146 RTI series radial leaded Aluminium Capacitor has cylindrical aluminium case with pressure relief and insulated in a blue sleeve. It is a polarized aluminium electrolytic capacitor with non-solid electrolyte. It features high temperature, low impedance, high stability and high reliability. It is used for smoothing, filtering and buffering in power supplies (SMPS, DC/DC converters) for telecommunication applications.
- 2500 to 6000hrs at 125°C Very long useful life
- 16 to 63V Rated voltage range
- 68 to 8200μF Rated capacitance range
- Very low ESR
- Excellent ripple current capability
- Charge and discharge proof
- AEC-Q200 Qualified
Technical Specifications
Capacitance
1000µF
Capacitance Tolerance
± 20%
Lifetime @ Temperature
4000 hours @ 125°C
Capacitor Case / Package
Radial Leaded
Product Diameter
18mm
Product Width
-
Product Range
146 RTI Series
Ripple Current
1.8A
Operating Temperature Max
125°C
SVHC
No SVHC (21-Jan-2025)
Voltage(DC)
50V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Lead Spacing
7.5mm
Product Length
-
Product Height
20mm
ESR
-
Operating Temperature Min
-55°C
Qualification
AEC-Q200
Technical Docs (3)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
