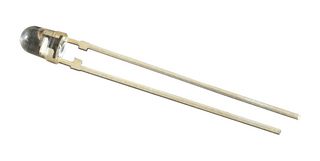

TEPT4400
Phototransistor, 570 nm, 30 °, 100 mW, 2 Pins, T-1 (3mm)
Image is for illustrative purposes only. Please refer to product description.
1,734 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.392 |
| 10+ | $0.332 |
| 25+ | $0.332 |
| 50+ | $0.332 |
| 100+ | $0.332 |
| 500+ | $0.332 |
| 1000+ | $0.309 |
Price for:Each
Minimum: 1
Multiple: 1
$0.39
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoTEPT4400
Newark Part No.28M9651
Technical Datasheet
Wavelength Typ570nm
Viewing Angle30°
Power Consumption100mW
No. of Pins2Pins
Transistor Case StyleT-1 (3mm)
Product Range-
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (07-Nov-2024)
Product Overview
The TEPT4400 is an Ambient Light Sensor with silicon NPN epitaxial planar phototransistor. It is sensitive to visible light much like the human eye and has peak sensitivity at 570nm.
- High photo sensitivity
- Angle of half sensitivity is ±30°
- Typical wavelength of 570nm
- Power dissipation of 100mW
- Operating temperature range from -40°C to 85°C
Applications
Sensing & Instrumentation, Consumer Electronics
Technical Specifications
Wavelength Typ
570nm
Power Consumption
100mW
Transistor Case Style
T-1 (3mm)
Automotive Qualification Standard
-
SVHC
No SVHC (07-Nov-2024)
Viewing Angle
30°
No. of Pins
2Pins
Product Range
-
MSL
-
