TSML1000

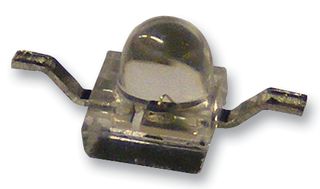

Infrared Emitter, 940 nm, 12 °, 7 mW/Sr, 800 ns, 800 ns
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoTSML1000Copy
Manufacturer Standard Lead Time12 weeks
Newark Part No.
Re-Reel33C1780RL
Cut Tape33C1780
Your Part Number
5,467 In Stock
Need more?
FREE Standard Delivery
on orders over $200
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $1.320 | $1.32 |
| Total Price | $1.32 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $1.320 |
| 50+ | $0.905 |
| 100+ | $0.706 |
| 250+ | $0.652 |
| 500+ | $0.598 |
| 1000+ | $0.538 |
| 2500+ | $0.524 |
| 5000+ | $0.498 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVISHAY
Manufacturer Part NoTSML1000Copy
Manufacturer Standard Lead Time12 weeks
Newark Part No.
Re-Reel33C1780RL
Cut Tape33C1780
Technical Datasheet
Peak Wavelength940nm
Angle of Half Intensity12°
Diode Case Style-
Radiant Intensity (Ie)7mW/Sr
Rise Time800ns
Fall Time tf800ns
Forward Current If(AV)20mA
Forward Voltage VF Max1.2V
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Product Overview
The TSML1000 is a 940nm Infrared Emitting Diode in GaAlAs multi quantum well (MQW) technology. It is moulded in a clear, untinted plastic package (with lens) for surface mounting (SMD). It is suitable for use in remote control, punched tape readers, encoder, photointerrupters.
- High speed
- High radiant power
- High radiant intensity
- ϕ = ±12° Angle of half intensity
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching with Si photodetectors
- Versatile terminal configurations
Technical Specifications
Peak Wavelength
940nm
Diode Case Style
-
Rise Time
800ns
Forward Current If(AV)
20mA
Operating Temperature Min
-40°C
Product Range
-
Angle of Half Intensity
12°
Radiant Intensity (Ie)
7mW/Sr
Fall Time tf
800ns
Forward Voltage VF Max
1.2V
Operating Temperature Max
85°C
MSL
MSL 3 - 168 hours
