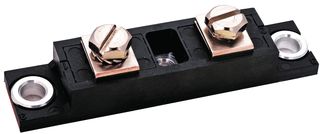

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | VS-403CNQ100PBFCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 88K8235 |
| Your Part Number | |
| Technical Datasheet |
104 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $60.870 |
| 5+ | $59.160 |
| 10+ | $57.460 |
| 25+ | $55.750 |
| 50+ | $54.040 |
| 100+ | $52.330 |
Price for:Each
Minimum: 1
Multiple: 1
$60.87
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | VS-403CNQ100PBFCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 88K8235 |
| Technical Datasheet | |
| Repetitive Peak Reverse Voltage | 100V |
| Average Forward Current | 400A |
| Forward Voltage Max | 690mV |
| Diode Module Configuration | Dual Common Cathode |
| Diode Case Style | TO-244AB |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Forward Surge Current | 25.5kA |
| Diode Mounting | Panel |
| Product Range | - |
| SVHC | No SVHC (08-Jul-2021) |
Product Overview
The VS-403CNQ100PBF is a high performance Schottky Rectifier Module has been optimized for low reverse leakage at high temperature. The Q series Schottky rectifier has proprietary barrier technology allows for reliable operation up to 175°C junction temperature. The centre tap Schottky rectifier features low forward voltage drop, high frequency operation and guard ring for enhanced ruggedness and long term reliability.
- 1A Repetitive avalanche current per leg
- 5500pF Maximum junction capacitance per leg
- 5nH Typical series inductance per leg
- UL Approved
Applications
Power Management, Industrial
Technical Specifications
| Repetitive Peak Reverse Voltage | 100V |
|---|---|
| Forward Voltage Max | 690mV |
| Diode Case Style | TO-244AB |
| Operating Temperature Max | 175°C |
| Diode Mounting | Panel |
| SVHC | No SVHC (08-Jul-2021) |
| Average Forward Current | 400A |
|---|---|
| Diode Module Configuration | Dual Common Cathode |
| No. of Pins | 3Pins |
| Forward Surge Current | 25.5kA |
| Product Range | - |
Technical Docs (2)
Alternatives for VS-403CNQ100PBF
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (08-Jul-2021) |
