XT9MNLANA18M432
Crystal, Surface Mount, 18.432 MHz, SMD, 11.1mm x 4.7mm, 50 ppm, 30 ppm, XT49M Series

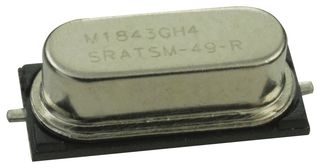

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoXT9MNLANA18M432Copy
Newark Part No.18C1460
Product RangeXT49M Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Product Information
ManufacturerVISHAY
Manufacturer Part NoXT9MNLANA18M432Copy
Newark Part No.18C1460
Product RangeXT49M Series
Technical Datasheet
Product RangeXT49M Series
Crystal Frequency18.432MHz
Frequency Tolerance + / -30ppm
Frequency Stability + / -50ppm
Load Capacitance-
ESR40ohm
Crystal Case / PackageSMD, 11.1mm x 4.7mm
No. of Pins2Pins
Crystal MountingSMD
Operating Temperature Min-10°C
Operating Temperature Max70°C
SVHCNo SVHC (16-Jan-2020)
Technical Specifications
Product Range
XT49M Series
Frequency Tolerance + / -
30ppm
Load Capacitance
-
Crystal Case / Package
SMD, 11.1mm x 4.7mm
Crystal Mounting
SMD
Operating Temperature Max
70°C
Crystal Frequency
18.432MHz
Frequency Stability + / -
50ppm
ESR
40ohm
No. of Pins
2Pins
Operating Temperature Min
-10°C
SVHC
No SVHC (16-Jan-2020)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jan-2020)
