216-106
Wire Ferrule, Single Wire, 14 AWG, 2.5 mm², 216 Series

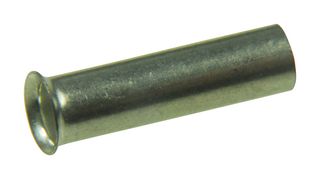

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No216-106
Newark Part No.58K7822
Product Range216 Series
Also Known AsGTIN UPC EAN: 4017332277686
Technical Datasheet
16,706 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.069 |
| 25+ | $0.064 |
| 100+ | $0.062 |
| 250+ | $0.057 |
| 500+ | $0.053 |
Price for:Each
Minimum: 1
Multiple: 1
$0.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAGO
Manufacturer Part No216-106
Newark Part No.58K7822
Product Range216 Series
Also Known AsGTIN UPC EAN: 4017332277686
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max14AWG
Conductor Area CSA2.5mm²
Pin Length-
Insulator Colour-
Product Range216 Series
Overall Length10mm
Insulator MaterialUninsulated
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 216-106 is an Uninsulated Ferrule Terminal suitable for 2.5mm²/14AWG wire size. It is made of electro-tin plated electrolytic copper, according to DIN 46228 and part 1/08.92.
- Gastight crimped
- 10mm Strip length
Applications
Industrial
Technical Specifications
Wire Ferrule Type
Single Wire
Conductor Area CSA
2.5mm²
Insulator Colour
-
Overall Length
10mm
Terminal Material
Copper
SVHC
No SVHC (21-Jan-2025)
Wire Size AWG Max
14AWG
Pin Length
-
Product Range
216 Series
Insulator Material
Uninsulated
Terminal Plating
Tin
Technical Docs (1)
Alternatives for 216-106
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
