9019080000

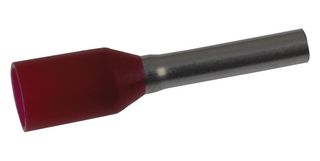

Wire Ferrule, Single Wire, 17 AWG, 1 mm², 8 mm, Red
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No9019080000
Newark Part No.65T5840
Also Known AsH 1/14D
Technical Datasheet
7 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $41.380 |
| 10+ | $39.420 |
| 25+ | $37.840 |
| 50+ | $34.500 |
| 100+ | $32.340 |
| 250+ | $30.180 |
| 500+ | $29.000 |
Price for:Pack of 500
Minimum: 1
Multiple: 1
$41.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No9019080000
Newark Part No.65T5840
Also Known AsH 1/14D
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max17AWG
Conductor Area CSA1mm²
Pin Length8mm
Insulator ColourRed
Product Range-
Overall Length14mm
Insulator MaterialPP (Polypropylene)
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 9019080000 is a red insulated Wire End Ferrule Terminal made of PP (polypropylene) insulator. The H1,0/14D R ferrule features crimp termination and 17AWG maximum wire connection cross section.
- 10mm Strip length
Applications
Industrial
Technical Specifications
Wire Ferrule Type
Single Wire
Conductor Area CSA
1mm²
Insulator Colour
Red
Overall Length
14mm
Terminal Material
Copper
SVHC
No SVHC (23-Jan-2024)
Wire Size AWG Max
17AWG
Pin Length
8mm
Product Range
-
Insulator Material
PP (Polypropylene)
Terminal Plating
Tin
