701944

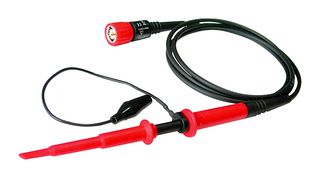

Oscilloscope Probe, High-Voltage Passive Probe, 400 MHz, 1 kV, 100:1, Oscilloscopes
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
| Quantity | Price |
|---|---|
| 1+ | $655.290 |
Price for:Each
Minimum: 1
Multiple: 1
$655.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerYOKOGAWA
Manufacturer Part No701944
Newark Part No.91AH5625
Technical Datasheet
Oscilloscope Probe FunctionHigh-Voltage Passive Probe
Bandwidth400MHz
Input Voltage Max1kV
Test Probe Attenuation100:1
For Use WithOscilloscopes
Product Range-
SVHCTo Be Advised
Product Overview
701944 is a 1000Vrms/400MHz high voltage passive probe for use with DL1700, DLM2000, DLM3000, DLM4000, DLM5000, DL/6000, DLM6000, DL9000 and SB5000 series.
- Attenuation ratio 100:1
- Input resistance is 50Mohm
- Input capacitance is 7.5pF
- Maximum input voltage 1000Vrms, 4000V transient over-voltage
- Probe length (coax) is 1.2meter
Contents
High voltage passive probe, Ground leads, Solid tip, Spring tip, Insulated cap, Pincher tip, Tool, Safety alligator clip, Color-coding rings.
Technical Specifications
Oscilloscope Probe Function
High-Voltage Passive Probe
Input Voltage Max
1kV
For Use With
Oscilloscopes
SVHC
To Be Advised
Bandwidth
400MHz
Test Probe Attenuation
100:1
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
