770 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $16.800 |
| 5+ | $15.520 |
| 10+ | $14.410 |
| 25+ | $13.120 |
| 50+ | $12.870 |
| 100+ | $12.600 |
| 250+ | $12.340 |
Price for:Each
Minimum: 1
Multiple: 1
$16.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ZF |
|---|---|
| Manufacturer Part No | 0E13-00M0Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Newark Part No. | 29F2879 |
| Product Range | E Series |
| Technical Datasheet | |
| Microswitch Type | Snap Action |
| Microswitch Actuator | Spring Plunger |
| Contact Configuration | SPDT |
| Switch Terminals | Quick Connect |
| Contact Current Max | 15A |
| Contact Voltage DC Nom | - |
| Product Range | E Series |
| Contact Voltage AC Nom | 250V |
| Operating Force Max | 425gf |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

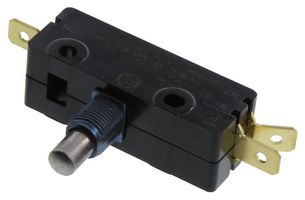

The 0E1300M0 is a single-pole double-throw (SPDT) general-purpose Snap Action Switch with a thermoplastic button with extra over-travel and ferrule standard ratio actuator. The E13 series switch has long life coil spring and snap action mechanism. It has silver alloy contacts, copper alloy quick-connect common terminal and general purpose phenolic case.
- UL94HB Flammability rating
- 105°C Temperature rating
Applications
Consumer Electronics, Industrial
Technical Specifications
| Microswitch Type | Snap Action |
|---|---|
| Contact Configuration | SPDT |
| Contact Current Max | 15A |
| Product Range | E Series |
| Operating Force Max | 425gf |
| Microswitch Actuator | Spring Plunger |
|---|---|
| Switch Terminals | Quick Connect |
| Contact Voltage DC Nom | - |
| Contact Voltage AC Nom | 250V |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
