800 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $23.290 |
| 5+ | $22.020 |
| 10+ | $20.560 |
| 25+ | $19.140 |
| 50+ | $17.610 |
| 100+ | $16.590 |
| 250+ | $15.220 |
Price for:Each
Minimum: 1
Multiple: 1
$23.29
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ZF |
|---|---|
| Manufacturer Part No | 0E20-00A0Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Newark Part No. | 94F388 |
| Product Range | E Series |
| Technical Datasheet | |
| Microswitch Type | Snap Action |
| Microswitch Actuator | Pin Plunger |
| Contact Configuration | DPDT |
| Switch Terminals | Quick Connect |
| Contact Current Max | 20A |
| Contact Voltage DC Nom | - |
| Product Range | E Series |
| Contact Voltage AC Nom | 250V |
| Operating Force Max | 1.28kgf |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

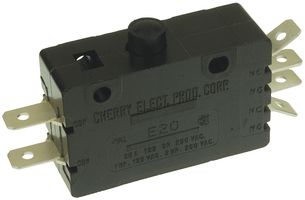

The 0E2000A0 is a double-pole double-throw (DPDT) general-purpose Snap Action Switch with a thermoplastic standard ratio button actuator. The E20 series switch has long life coil spring and snap action mechanism. It has silver alloy contacts, copper alloy common terminal and general purpose phenolic case.
- UL94HB Flammability rating
- 105°C Temperature rating
Applications
Consumer Electronics, Industrial
Technical Specifications
| Microswitch Type | Snap Action |
|---|---|
| Contact Configuration | DPDT |
| Contact Current Max | 20A |
| Product Range | E Series |
| Operating Force Max | 1.28kgf |
| Microswitch Actuator | Pin Plunger |
|---|---|
| Switch Terminals | Quick Connect |
| Contact Voltage DC Nom | - |
| Contact Voltage AC Nom | 250V |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
