1182 TAPE (3/4)
Tape, Foil Sealing, Pressure Sensitive Acrylic Adhesive, Copper, Conductive, 3.5 mil (0.088 mm)

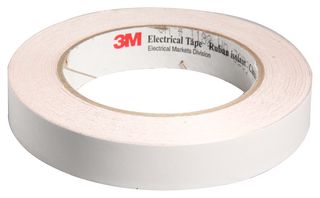

Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part No1182 TAPE (3/4)
Newark Part No.92B3483
Product Range1182 Series
Also Known AsGTIN UPC EAN: 00051138496722
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 10+ | $134.720 |
| 20+ | $127.410 |
| 50+ | $120.090 |
| 100+ | $112.020 |
Price for:Each
Minimum: 12
Multiple: 12
$1,616.64
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Manufacturer3M
Manufacturer Part No1182 TAPE (3/4)
Newark Part No.92B3483
Product Range1182 Series
Also Known AsGTIN UPC EAN: 00051138496722
Technical Datasheet
Tape TypeCopper
Adhesive TypePressure Sensitive Acrylic Adhesive
Tape Backing MaterialCopper Foil
Tape Length - Metric16.5m
ConductivityConductive
Tape Length - Imperial18yard
Total Tape Thickness3.5 mil (0.088 mm)
Roll Length - Imperial18yard
Roll Length - Metric16.5m
Tape Width - Imperial0.75"
Tape Width - Metric19.05mm
Product Range1182 Series
SVHCTo Be Advised
Product Overview
The 1182 series 3M™ Shielding Tape has a 1.4-mil copper foil backing with conductive acrylic pressure-sensitive adhesive on both sides and a liner. The tape with double-coated conductive adhesive makes an excellent conductive gasket. It offers an excellent method of grounding and bonding conductive surfaces. It also exhibits low thermal resistance.
- UL510 Flammability rating
- Dead soft 1-ounce copper foil backing for good shielding effectiveness, soldering and converting
- Acrylic pressure-sensitive adhesive has good resistance to heat, oxidation, solvents and oils
- Adhesive provides low contact resistance between substrate and backing to drain static charge
- Removable liner makes it easy to handle and die cut complex shapes
- Available as both standard and custom roll widths & lengths to meet a variety of application needs
Applications
Defence, Military & Aerospace, Maintenance & Repair, Industrial
Notes
Any width or custom configuration available upon request
Technical Specifications
Tape Type
Copper
Tape Backing Material
Copper Foil
Conductivity
Conductive
Total Tape Thickness
3.5 mil (0.088 mm)
Roll Length - Metric
16.5m
Tape Width - Metric
19.05mm
SVHC
To Be Advised
Adhesive Type
Pressure Sensitive Acrylic Adhesive
Tape Length - Metric
16.5m
Tape Length - Imperial
18yard
Roll Length - Imperial
18yard
Tape Width - Imperial
0.75"
Product Range
1182 Series
Technical Docs (3)
Alternatives for 1182 TAPE (3/4)
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
