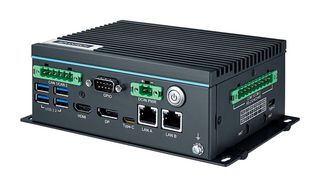

ESRP-CMS-U238V2

ESRP-CMS-U238V2 is a ThinManager® ready thin client multi-display. ThinManager® compatible industrial thin clients exclusively integrate with Thin Manager® software and are verified for Thin Manager distributed applications. The thin clients are used to display content delivered from a remote ThinManager® server. Multiple thin clients set up across the plant or facility with various roles and all maintained by the ThinManager® server. All content remains on the server so downtime is reduced in the event of a failure. ESRP-CMS-U238V2 is ThinManager® Ready Compact IoT Edge Computer with Intel® Core™ i and four displays (HDMI *1, DP*1, USB Type-C*2). It is certified by FCC Class A, UL, CCC, BSMI.

• Fanless multi-display industrial thin client with wide operating temperature
• Verified with ThinManager®, ThinManage® BIOS enabled
• ThinManager ready for firmware package 13.2.0-9.4 or later
• TermCap 9.13.2.101 for ThinManager® 11.2 and earlier/TermCap2 13.2.101 for ThinManager® 12 and later
• Aluminum housing enclosure, 30 to 60W power consumption range
• 12VDC 7A (support ErP), 19VDC 4.5A (AC to DC adapter is included) power requirement
• DDR5 4800 8GB memory, Intel® i3-1215UE (6 cores), 1.2 GHz (up to 4.4GHz) processor
• 2 x RJ-45 LAN, 4 x USB 3.2 (Gen2 10Gbps)/2 x USB Type-C (USB3.2 Gen2) USB
• 1 x Terminal block power connector
• Dimension is (W x D x H) 5.91 x 4.22 x 2.36inch, operating temperature range from -20 to 60°C

Contents

ESRP-CMS-U238V2 multi-display ThinManager ready thin client, XUNO-FSP084-DHAN3 adapter.
