9342 010500

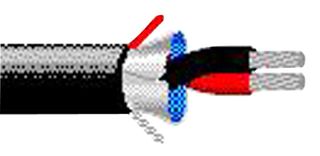

The 9342 010500 is a 1-pair Shielded Cable with 16AWG stranded tinned copper conductors and a PVC/nylon insulation. The 9342 series multi-conductor 600V tray cable comes with a Beldfoil® aluminum foil-polyester tape (100% coverage) outer shield, 16AWG tinned copper conductor outer shield drain wire and a black PVC outer jacket. Belden paired-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. Belden meets the demand for shielding technology with innovative designs in foil and braid configurations like the Beldfoil®, for highly effective EMI and RFI protection and 100% shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies. The Beldfoil® shield is lightweight, strong, flexible and thin, yet extremely effective.

• 177.928N Maximum recommended pulling tension
• 164.05pF/m Nominal capacitance conductor to conductor
• 13.78Ω/km at 20°C Nominal conductor DC resistance (DCR)

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
