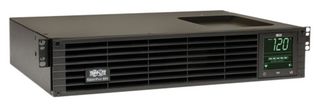

SMART1000RM2U

The SMART1000RM2U is a 6-outlet 700W SmartPro Line Interactive Uninterruptible Power Supply (UPS) with enhanced LCD interface offers network-grade power protection. The line interactive uninterruptible power supply (UPS) with built-in auto-voltage regulation (AVR) actively corrects brownouts and overvoltage back to usable levels while maintaining a full battery charge in case of power failure. The interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. The 95% line-mode efficiency offers reduced heat emissions. HID-compliant USB port enables integration with built-in power management and auto shutdown features of windows and Mac OS X. The network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.

• NEMA 5-15P input plug, 6 NEMA 5-15R output receptacles
• Two independently switchable output load banks
• High 95% efficiency rating in line-power mode
• Reduced power consumption and BTU emissions
• Hot-swappable, user-replaceable internal batteries can be replaced
• EMI/RFI line noise filtering
• Interactive LCD monitoring screen
• Network power management and control capability

Applications

Power Management, Communications & Networking, Consumer Electronics

Contents

SMART1000RM2U SmartPro 120V/1kVA/800W Line-interactive sine wave UPS, USB cable, DB9 cable, EPO cable, PowerAlert software, Mounting hardware and Owner's manual.
