                      AT91SAM3U-SK

                      AM3U, TFT LCD, SERIAL, RS232, DEV KIT

                      EMBEST AT91SAM3U-SK
                      EMBEST AT91SAM3U-SK
                      EMBEST AT91SAM3U-SK
                      EMBEST AT91SAM3U-SK
                      EMBEST AT91SAM3U-SK
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerEMBEST
                      Manufacturer Part NoAT91SAM3U-SK
                      Newark Part No.63R5715
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerEMBEST
                      Manufacturer Part NoAT91SAM3U-SK
                      Newark Part No.63R5715
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerAtmel
                      No. of Bits32bit
                      Silicon Family NameAT91SAM3xxx
                      Core ArchitectureARM
                      Core Sub-ArchitectureCortex-M3
                      Silicon Core NumberAT91S
                      Kit ContentsAT91SAM3U ARM Cortex-M3 Board, LCD Panel, Emlink for ARM, Convert Module, Various Cables, CDROM
                      Product Range-
                      SVHCTo Be Advised

                      Product Overview

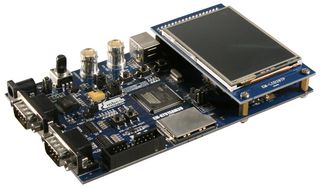

                      The ATSAM3U ARM-CM3 board is an ARM embedded evaluation-board produced by Embest, integrate the Cortex-M3 core-based processor ATSAM3U4E, operating at 96MHz frequency. The board features USB, I2C, MCI interface, TFT-LCD, USART interface, 96 I/O port, EBI support SRAM/NOR/NAND memory, etc. Plenty of software examples, which can be used in Keil MDK environment, are accompanied in CDROM. Cortex-M3 based AT91SAM3U Evaluation-board to generate and test application programs for the SAM3U Series microcontroller family. With this hands-on process, User has an option to determine the hardware and software requirements for current and future product development. The AT91SAM3U Evaluation-board ships with the AT91SAM3U device that is a superset of several other device variants of the SAM3U microcontroller series. The AT91SAM3U board contains all the hardware components required in a single-chip AT91SAM3U4E system.

                      • Features standard DB9 connector on the AT91SAM3U board for the AT91SAM3U's built-in UART interfaces
                      • Features standard USB Type B connector for applications requiring USB communications
                      • A detachable, 240x320 TFT, color LCD display
                      • An adjustable analogue voltage source for testing the ADC built into the AT91SAM3U
                      • AT91SAM3U board includes 1Mbyte of external static RAM and 8Mbytes of external SPI flash memory
                      • Featured with MicroSD Card connector for developing applications requiring access to MicroSD Cards
                      • On-chip debugging via embedded trace macrocell capabilities of STM32F103 device
                      • A JTAG on-chip debug interface, coupled with the ULINK USB-JTAG adapter, provides flash programming
                      • Lithium battery is included on the AT91SAM3U

                      Contents

                      AT91SAM3U ARM-CM3 Board, power supply, universal input AC/DC power supply with US, Europe and UK plug adapters, one 3V Lithium Battery type CR1225, one USB cable, one serial RS-232 cable.

                      Technical Specifications

                      Silicon Manufacturer

                      Atmel

                      Silicon Family Name

                      AT91SAM3xxx

                      Core Sub-Architecture

                      Cortex-M3

                      Kit Contents

                      AT91SAM3U ARM Cortex-M3 Board, LCD Panel, Emlink for ARM, Convert Module, Various Cables, CDROM

                      SVHC

                      To Be Advised

                      No. of Bits

                      32bit

                      Core Architecture

                      ARM

                      Silicon Core Number

                      AT91S

                      Product Range

                      -

                      Technical Docs (3)

                      element14 Technical Page EN

                      element14 Technical Page EN

                      Technical Data Sheet EN

                      Associated Products

                      5 Products Found

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:To be advised
                      RoHS Phthalates Compliant:To be advised
                      SVHC:To Be Advised
                      Download Product Compliance Certificate
