2643625202

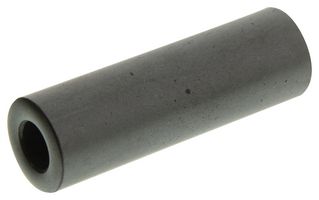

Ferrite Core, Cylindrical, 384 ohm, 50.8 mm Length, 25 MHz to 300 MHz, 7.9 mm ID, 15.9 mm OD
Image is for illustrative purposes only. Please refer to product description.
ManufacturerFAIR-RITE
Manufacturer Part No2643625202Copy
Manufacturer Standard Lead Time22 weeks
Newark Part No.81C9718
Your Part Number
8,263 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $4.000 |
| 25+ | $2.500 |
| 100+ | $1.890 |
| 250+ | $1.850 |
| 500+ | $1.820 |
| 1000+ | $1.780 |
| 2500+ | $1.730 |
| 5000+ | $1.700 |
Price for:Each
Minimum: 1
Multiple: 1
$4.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerFAIR-RITE
Manufacturer Part No2643625202Copy
Manufacturer Standard Lead Time22 weeks
Newark Part No.81C9718
Technical Datasheet
Outer Diameter15.9mm
Product Length50.8mm
Inner Diameter7.9mm
Frequency Min25MHz
Frequency Max300MHz
Impedance384ohm
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 2643625202 is a round cable EMI Suppression Core has been burnished to remove the sharp edges. The suppression cable core is controlled for impedances only. Minimum impedance values are specified for the + marked frequencies. The minimum impedance is typically the listed impedance less 20%. The single turn impedance tests are performed on the 4193A vector impedance meter. This bead is suitable for use with cable components.
- Supports broadband frequencies (25 to 300MHz)
- 650 Hardness
Applications
Industrial, Communications & Networking
Technical Specifications
Outer Diameter
15.9mm
Inner Diameter
7.9mm
Frequency Max
300MHz
Product Range
-
Product Length
50.8mm
Frequency Min
25MHz
Impedance
384ohm
SVHC
No SVHC (04-Feb-2026)
