TV33-SA-L-T-09

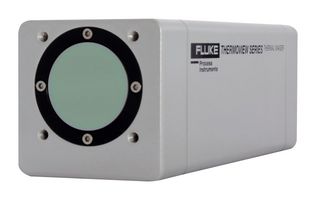

TV33-SA-L-T-09 is a ThermoView® TV30 camera. It defines a new class of high-performance multi-product thermal imager, providing the models with a full complement of accessories with an IP67 environmental rating that can operate in the harshest environments. For industrial applications requiring a standalone sensor, the rugged TV30 SA models offer advanced on-board analytics capabilities including integrated and scalable I/O. The integrated I/O is standard with every SA camera and provides a simple, easy to install solution for factory automation and process applications. For added flexibility, the imager can interface directly to external I/O modules for more demanding applications. For even simpler and more direct communications with factory automation systems, the TV30 SA models offer fieldbus flexibility including OPC UA and MQTT communications.

• Operates as stand-alone device built-in http web server for real time view and configuration
• 320 x 240 pixel IR resolution, 22° x 16° (tele) lens, 9Hz frame rate
• Temperature range from -10 to 1300°C(14 to 2372°F)
• Rugged housing, IP67 rated
• Remote motorized focus
• Stand-alone camera with on-board analytics including alarms, condition monitoring, AOI calculations
• LAN/Ethernet with PoE for communication provides access to Web Server
• High ambient temperatures with cooling enclosure
• Full complement of accessories including air purge and outdoor enclosure
• IP67 (IEC 60529) rated

Contents

ThermoView TV30 camera, Printed version of safety data sheet & quickstart.
