| Fabricant | ABB - THOMAS & BETTS |
|---|---|
| Réf. Fabricant | 54108NTCopie |
| Délai d’approvisionnement standard du fabricant | 6 semaines |
| Code Commande | 22M2905 |
| Gamme de produit | Color Keyed Series |
| Votre numéro de pièce | |
| Fiche technique |
3 520 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 17,260 $ |
| 5+ | 15,960 $ |
| 10+ | 15,110 $ |
| 25+ | 14,800 $ |
| 50+ | 14,500 $ |
| 100+ | 14,200 $ |
| 250+ | 13,900 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
17,26 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | ABB - THOMAS & BETTS |
|---|---|
| Réf. Fabricant | 54108NTCopie |
| Délai d’approvisionnement standard du fabricant | 6 semaines |
| Code Commande | 22M2905 |
| Gamme de produit | Color Keyed Series |
| Fiche technique | |
| Product Range | Color Keyed Series |
| Termination | Crimp |
| Wire Size AWG Max | 1AWG |
| Conductor Area CSA | - |
| Terminal Type | Compression Lug |
| Stud Size - Metric | M6 |
| Stud Size - Imperial | 1/4" |
| Insulation | Non Insulated |
| SVHC | No SVHC (15-Jan-2018) |
Aperçu du produit

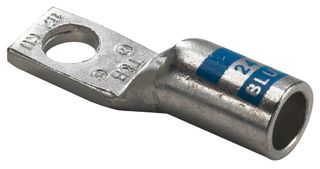

The 54108NT is a 1-hole Color-Keyed® standard barrel Narrow Tongue Lug, 1/4-inch stud with inspection hole, made of high conductivity copper with electro-tin plated finish. UL and CSA listed for copper code cables, inspection peep hole provided to ensure adequate cable insertion and color coded for correct matching of installing die and connector.
- #1AWG Wire size
- Code-37 green die
- Terminates into very narrow spaces
- 35kV Maximum voltage
Applications
Power Management, Industrial, Motor Drive & Control
Avertissements
Do not crimp on energized wires.
Spécifications techniques
| Product Range | Color Keyed Series |
|---|---|
| Wire Size AWG Max | 1AWG |
| Terminal Type | Compression Lug |
| Stud Size - Imperial | 1/4" |
| SVHC | No SVHC (15-Jan-2018) |
| Termination | Crimp |
|---|---|
| Conductor Area CSA | - |
| Stud Size - Metric | M6 |
| Insulation | Non Insulated |
Documents techniques (1)
Produits de remplacement pour 54108NT
1 produit trouvé
Produits associés
1 produit trouvé
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (15-Jan-2018) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
