| Fabricant | ABB - THOMAS & BETTS |
|---|---|
| Réf. Fabricant | 54140Copie |
| Délai d’approvisionnement standard du fabricant | 6 semaines |
| Code Commande | 94F3020 |
| Gamme de produit | Color Keyed Series |
| Votre numéro de pièce | |
| Fiche technique |
3 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 381,330 $ |
| 5+ | 358,900 $ |
| 10+ | 348,660 $ |
Prix pour :Pack of 50
Minimum: 1
Multiple: 1
381,33 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | ABB - THOMAS & BETTS |
|---|---|
| Réf. Fabricant | 54140Copie |
| Délai d’approvisionnement standard du fabricant | 6 semaines |
| Code Commande | 94F3020 |
| Gamme de produit | Color Keyed Series |
| Fiche technique | |
| Product Range | Color Keyed Series |
| Termination | Crimp |
| Wire Size AWG Max | 4AWG |
| Conductor Area CSA | - |
| Terminal Type | Compression Lug |
| Stud Size - Metric | M10 |
| Stud Size - Imperial | 3/8" |
| Stud Size - Imperial | 3/8" |
| Insulation | Non Insulated |
| SVHC | No SVHC (15-Jan-2018) |
Aperçu du produit

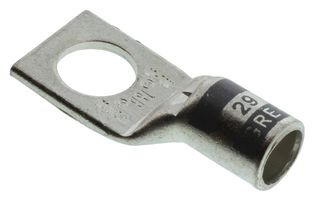

The 54140 is a gray Compression Lug Terminal made of high-conductivity wrought copper with electro tin plated finish. The Color-Keyed® lug terminal features straight standard barrel certified to 600V and recommended up to 35kV and crimp termination. It accepts 4AWG wire size.
- Standard marking
- Straight tongue angle
Applications
Defence, Military & Aerospace
Avertissements
Risk of shock, disconnect power before installation.
Spécifications techniques
| Product Range | Color Keyed Series |
|---|---|
| Wire Size AWG Max | 4AWG |
| Terminal Type | Compression Lug |
| Stud Size - Imperial | 3/8" |
| Insulation | Non Insulated |
| Termination | Crimp |
|---|---|
| Conductor Area CSA | - |
| Stud Size - Metric | M10 |
| Stud Size - Imperial | 3/8" |
| SVHC | No SVHC (15-Jan-2018) |
Documents techniques (1)
Produits de remplacement pour 54140
6 produit(s) trouvé(s)
Produits associés
3 produit(s) trouvé(s)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (15-Jan-2018) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
| Traçabilité des produits |
