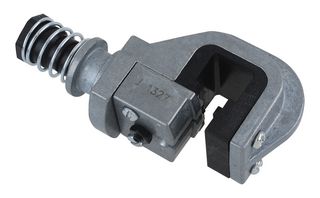

58063-2
Crimp Tool Die, AMPLIMITE HDP-20 Connectors
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 879,320 $ |
| 3+ | 865,120 $ |
| 5+ | 850,930 $ |
Informations produit
Aperçu du produit
The 58063-2 is a Crimp Tool Head for 58074-1 pistol grip tool, wire insertion rod and adjuster - Acts as a piston and regulates travel of the wire inserter, carriage - Slides right and left in head assembly and automatically advances the connector after each termination, drag - Prevents connector from moving out of position after it has been advanced, connector slot - Opening into which connector is secured in head assembly, adjustable stop - Controls the size of the connector slot, permitting different size connectors to be secured in head assembly, wire guide - Open channel into which unstripped wire is inserted and bottomed for terminating, feed pawl - When pushed forward, allows carriage to be moved either right or left, depending on where connector is to be located in head assembly.
- Wire inserter - Forces unstripped wire into the two slotted beams of the contact
Applications
Maintenance & Repair
Spécifications techniques
AMPLIMITE HDP-20 Connectors
Te Connectivity / Amp 580
58074-1 Manual Pistol-Grip Tool Handle and 58075-1 Air Pistol-Grip Tool Handle
No SVHC (21-Jan-2025)
