65801-012LF

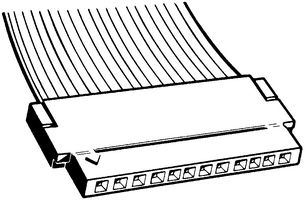

FFC / FPC Board Connector, 2.54 mm, 12 Contacts, Receptacle, FCI Clincher Series, IDC / IDT
| Fabricant | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Réf. Fabricant | 65801-012LFCopie |
| Délai d’approvisionnement standard du fabricant | 7 semaines |
| Code Commande | 53K1454 |
| Gamme de produit | FCI Clincher Series |
| Votre numéro de pièce | |
| Fiche technique |
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 4,060 $ |
| 10+ | 3,630 $ |
| 25+ | 3,360 $ |
| 50+ | 3,130 $ |
| 100+ | 2,930 $ |
| 250+ | 2,810 $ |
| 500+ | 2,610 $ |
| 2500+ | 2,450 $ |
Informations produit
| Fabricant | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Réf. Fabricant | 65801-012LFCopie |
| Délai d’approvisionnement standard du fabricant | 7 semaines |
| Code Commande | 53K1454 |
| Gamme de produit | FCI Clincher Series |
| Fiche technique | |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 12Contacts |
| Gender | Receptacle(Voir les connecteurs associés) |
| Product Range | FCI Clincher Series |
| Contact Termination Type | IDC / IDT |
| Contact Position | - |
| No. of Rows | 1 Row |
| Contact Plating | Tin Plated Contacts |
| Contact Material | Copper Alloy |
| FFC / FPC Thickness | 0.3mm |
| SVHC | No SVHC (21-Jan-2025) |
Aperçu du produit
The Clincher series CLINCHER™ Connector family includes single-row pin and receptacle connectors designed for termination to flat flexible circuitry. Products are available for flat flexible cable (FFC), flexible printed circuit (FPC) and conductive ink circuitry (CIC). The connector includes features that optimize reliability at both the termination and disconnect interfaces. Clinch cable termination produces gas-tight, contamination-free connections to each conductor. The receptacle connector utilizes FCI's proven and highly-reliable Mini PV™ contact design. Complementary shrouded PCB headers provide options for latching and proper connector alignment. The contacts are pre-loaded to connector housings enabling mass termination to unprepared cable. The CLINCHER™ connector mass termination design accelerates cable assembly processes. It feature positive-locking, latching options assure secure mating to industry-standard headers for severe applications.
- Clinch cable termination provides 4 gas-tight, contamination-free contact points to each conductor
- Receptacle design features highly-reliable Mini PV dual-metal contacts
- Housing window permits crimp inspection to verify proper termination
- Receptacle openings feature a bevelled lead-in to reduce risk of stubbing with mating pins
- Connector sizes range from 2 to 34 positions
- Polarization options aid proper alignment and mating
- Two-wall PCB headers provide passive proper termination
- Receptacle openings feature a bevelled lead-in environmental regulation
Applications
Consumer Electronics, Logistics, Industrial, Sensing & Instrumentation, Medical
Spécifications techniques
| Pitch Spacing | 2.54mm |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | IDC / IDT |
| No. of Rows | 1 Row |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Contacts | 12Contacts |
|---|---|
| Product Range | FCI Clincher Series |
| Contact Position | - |
| Contact Plating | Tin Plated Contacts |
| FFC / FPC Thickness | 0.3mm |
Documents techniques (2)
Produits de remplacement pour 65801-012LF
1 produit trouvé
Produits associés
2 produit(s) trouvé(s)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (21-Jan-2025) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
| Traçabilité des produits |
