DC8W8SA00LF
CONNECTOR, D SUB COMBO, RECEPTACLE, 8 POSITION
| Quantité | Prix |
|---|---|
| 1+ | 3,700 $ |
| 10+ | 3,200 $ |
| 25+ | 3,100 $ |
| 50+ | 2,990 $ |
| 100+ | 2,870 $ |
| 250+ | 2,690 $ |
| 500+ | 2,580 $ |
| 1000+ | 2,450 $ |
Informations produit
Aperçu du produit

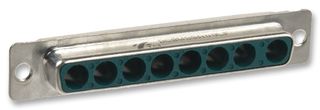

The DC8W8SA00LF is a 8-way D-sub Power Cable Connector with gold-plated copper alloy contacts. The D-subminiature power connector is a part of an industry standard for applications requiring robust and reliable connectors. This proven D-sub connectors are one of the most popular input/output interconnects, addressing a wide variety of applications. FCI offers D-sub economy range connectors to meet all design requirements and to address increasing needs for proven connectors for less demanding applications.
- Black glass filled thermoplastic insulator
- D-shaped shell design
- Designed for less demanding applications
- UL94V-0 Flammability rating
- Stamped and formed contacts
- 5A Current rating
- 250V Rated voltage
- ≤25mΩ Contact resistance
- >5000MΩ Insulation resistance
Applications
Communications & Networking, Consumer Electronics, Industrial, Sensing & Instrumentation, Defence, Military & Aerospace, Medical
Spécifications techniques
8Positions
DC
8Contacts
Solder
Amphenol FCI DW Series D Sub Power Socket Contacts
-
DC-8W8
FCI DW Series
Socket
Steel Body
-
No SVHC (21-Jan-2025)
