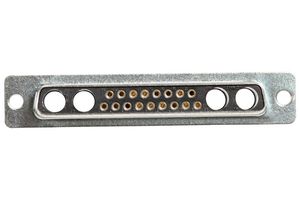

L77TWC21WA4S
Combination Layout D Sub Connector, TW Hybrid D Sub series, DC-21WA4, Receptacle, 21 Contacts
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 18,860 $ |
| 5+ | 18,860 $ |
| 10+ | 18,850 $ |
| 25+ | 17,550 $ |
| 50+ | 17,540 $ |
| 100+ | 17,520 $ |
| 250+ | 15,180 $ |
Informations produit
Aperçu du produit
The TW Hybrid D Sub series Hybrid D-sub Connectors permits a mix of contacts including signal, power, shielded, high voltage and fibre optics in the same housing with 18 different contacts arrangements. It was first developed from military series and has improved features new contacts, PCB configurations come preloaded with fixed contacts and brackets. A complete range of housings are also available for cable application. These connectors are supplied with screw machined contacts which are fixed in the insulator.
- <gt/>5000MΩ at 500VDC Minimum insulation resistance
- ≤5mΩ Contact resistance (maximum)
- 7.5A Current rating
- -55 to 155°C Temperature range
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Spécifications techniques
TW Hybrid D Sub series
Receptacle
21Contacts
17 Signal, 4 Power
DC
Metal Body
Gold Plated Contacts
DC-21WA4
17Contacts
4
Solder Cup
Cable Mount
Bronze
Lead
