031-2
RF / Coaxial Connector, BNC Coaxial, Straight Plug, Solder, 50 ohm, RG58, RG141, RG142, RG400
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 14,950 $ |
| 5+ | 14,600 $ |
| 10+ | 14,250 $ |
| 25+ | 12,790 $ |
| 50+ | 12,260 $ |
| 100+ | 11,580 $ |
| 250+ | 10,600 $ |
Informations produit
Aperçu du produit

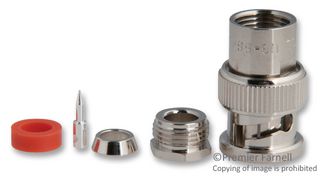

The 31-2 is a UG-88/U RF Connector, BNC series, BNC straight Clamp Plug with silver-plated brass contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature, lightweight units useable up to 11GHz and typically yield low reflection through 4GHz. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58, RG-58A, RG-58B and RG-58C cable.
- Standard polarity
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Spécifications techniques
BNC Coaxial
Solder
RG58, RG141, RG142, RG400
Silver Plated Contacts
Cable Mount
Lead
Straight Plug
50ohm
Brass
4GHz
-
