TSL2522_EVM_KT

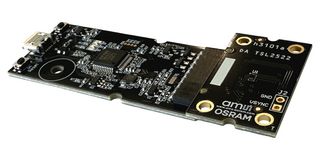

TSL2522_EVM_KT is a TSL2522 evaluation kit that comes with everything needed to evaluate the TSL2522 ambient light sensor. The evaluation kit comprises of a main controller board with a PIC microcontroller, an industry standard USB 2.0 interface (with a USB cable), a TSL2522 daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the ALS sensor settings as the PIC takes the TSL2522 I2C digital outputs to calculate ALS illuminance in lux approximating the human eye response.

• Highly sensitive ambient light sensor with light flicker detection
• Sensor comes in low-profile and small footprint, optical QFN package
• EVM controller Brd provides power and I²C communication to daughter brd through 10-pin connector

Contenu

TSL2522 daughter board, EVM controller board, USB cable (A to Micro-B).
