MAX11103EVKIT+

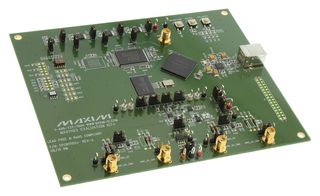

The MAX11103EVKIT+ is a MAX11103 evaluation kit (EV kit). It is a fully assembled and tested PCB that evaluates the MAX11103 2-channel, 12bit, SPI™-compatible 3Msps analogue to digital converter (ADC). The EV kit also includes Windows XP®, Windows Vista® and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the device. The EV kit comes installed with a MAX11103AUB+ in a 10 pin µMAX® package with an exposed pad. Typically used at automotive systems, battery-operated systems, communication systems, data acquisition, medical instrumentation and portable data logging.

• 48MHz SPI interface
• Time domain, frequency domain and histogram plotting in the EV kit software
• Frequency, RMS, min, max and average DC calculations in the EV kit software
• Collects up to one mega samples
• On-board input buffers
• USB-PC connection
• Proven PCB layout
• Fully assembled and tested
• Automotive Systems; Battery-Operated Systems; Communication Systems; Data Acquisition; Medical Instrumentation; Portable Data Logging
