8500B

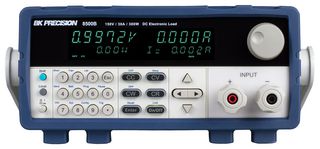

• 8500B series 150V, 30A, 300W programmable DC electronic load
• CC/CV/CR/CW operating modes
• 16-bit voltage and current measurement system providing up to 0.1mV / 0.1mA resolution
• Transient mode up to 10KHz in CC mode
• List mode function for custom step sequences
• Supports both SCPI and backwards compatible 8500 series protocol
• Store and recall up to 100 instrument settings
• Adjustable slew rate in CC mode
• Flexible triggering options via front panel, external input, timer, or bus
• Built-in battery test function, specify cut-off voltage, capacity level, and time
• Test modes to validate the OCP/OPP protection functions of a power supply
• OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
• Remote sense and short-circuit test
• Analog current monitoring
• Two thermostatically controlled fans (linear-speed control to minimize noise)
• Integrated meter measures voltage, current, & power
• Rack-mountable

Contenu

Programmable DC electronic load, Power cord, USB cable, certificate of calibration, USB to TTL serial converter IT-E132B.
