3079E B021000
Multipair Cable, ISA/SP-50 Profibus DP, Shielded, 1 Pair, 22 AWG, 1000 ft, 305 m

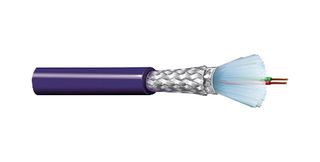

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantBELDEN
Réf. Fabricant3079E B021000
Code Commande68K7423
Fiche technique
Cable ShieldingShielded
No. of Pairs1 Pair
Wire Gauge22AWG
Conductor Area CSA-
Reel Length (Imperial)1000ft
Reel Length (Metric)305m
Jacket ColorPurple
No. of Max Strands x Strand Size7 x 30AWG
Voltage Rating300Vrms
Jacket MaterialPVC
Conductor MaterialTinned Copper
External Diameter8mm
Product Range-
SVHCNo SVHC (07-Jul-2017)
Aperçu du produit
3079E B021000 is a 3079E multi-conductor DataBus® ISA/SP-50 Profibus multipair cable.
- 22AWG stranded (7x30) bare copper conductors
- Flame Retardant Foam Polyethylene (FRFPE) insulation
- Beldfoil® shield (100% coverage) plus a tinned copper braid shield (65% coverage)
- Polyvinyl chloride (PVC) jacket
- Operating temperature range from -30°C to +75°C
- 150 ohm impedance
- 8.5pF/ft nom mutual capacitance
- 0.267µH/ft nom inductance
- 78% nominal velocity of propagation (VP)
Spécifications techniques
Cable Shielding
Shielded
Wire Gauge
22AWG
Reel Length (Imperial)
1000ft
Jacket Color
Purple
Voltage Rating
300Vrms
Conductor Material
Tinned Copper
Product Range
-
No. of Pairs
1 Pair
Conductor Area CSA
-
Reel Length (Metric)
305m
No. of Max Strands x Strand Size
7 x 30AWG
Jacket Material
PVC
External Diameter
8mm
SVHC
No SVHC (07-Jul-2017)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (07-Jul-2017)
