82760 877U500

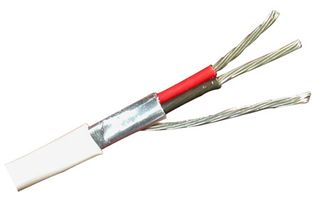

The 82760 877U500 is a 1-pair Shielded Cable with 18AWG stranded tinned copper conductors and a fluorinated ethylene propylene insulation. The 82760 series multi-conductor cable comes with an overall Beldfoil® aluminum foil-polyester tape outer shield, 20AWG tinned copper outer shield drain wire and a natural color Flamarrest® low smoke polyvinyl chloride outer jacket. Belden paired-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. Belden meets the demand for shielding technology with innovative designs in foil and braid configurations like the Beldfoil®, for highly effective EMI and RFI protection and 100% shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies.

• Beldfoil® shield is lightweight, strong, flexible and thin, yet extremely effective
• 284.685N Maximum recommended pulling tension
• 167.331pF/m Nominal capacitance conductor to conductor
• 69% Nominal velocity of propagation
• 18.046Ω/km at 20°C Nominal conductor DC resistance (DCR)

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
