83029 010100

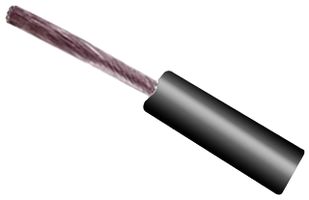

Wire, Hook Up, Hi Temp, PTFE, Black, 18 AWG, 100 ft
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 443,140 $ |
| 5+ | 426,000 $ |
| 10+ | 411,310 $ |
Informations produit
Aperçu du produit
The 83029 010100 is a 100ft high temperature Hook-up/Lead Wire with 18AWG (19 x 30) stranded silver-coated copper conductor and extruded TFE PTFE insulation. PTFE is a fluorinated thermoplastic with outstanding thermal, physical and electrical properties. PTFE is generally restricted to applications requiring its special characteristics because its basic resin and processing costs are relatively high.
- 18.866Ω/km at 20°C Nominal conductor DC resistance
- -70 to +200°C Operating temperature range
- VW-1 Flame tested
Applications
Computers & Computer Peripherals, Signal Processing, Consumer Electronics, Lighting, Motor Drive & Control, HVAC, Industrial, Automotive, Defence, Military & Aerospace
Spécifications techniques
PTFE
18AWG
100ft
200°C
300V
1.981mm
-
Black
-
30.5m
19 x 30AWG
Silver Plated Copper
MIL-W-16878/5, UL 1180
No SVHC (10-Jun-2022)
Documents techniques (1)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
