Imprimer la page
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
10 500 En Stock
Livraison dans 2-3 jours ouvrables(Expédition directe par le fournisseur)
Commandez avant 21 h
Quantité | Prix |
---|---|
1+ | 947,430 $ |
5+ | 888,210 $ |
10+ | 829,000 $ |
25+ | 769,790 $ |
Prix pour :Spool of 250
Minimum: 1
Multiple: 1
947,43 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantBELDEN
Réf. Fabricant8700 010250
Code Commande02F4159
Fiche technique
Coaxial Cable TypeRGMini
Wire Gauge28AWG
Conductor Area CSA-
Impedance32ohm
Reel Length (Imperial)250ft
Reel Length (Metric)76.2m
Jacket ColorBlack
Jacket MaterialPVC
Conductor MaterialTinned Copper
No. of Max Strands x Strand SizeSolid
External Diameter1.37mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Aperçu du produit

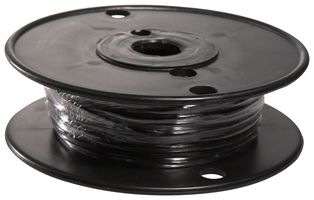

The 8700 010250 is a Coaxial Cable with 28AWG solid tinned copper conductor and a polypropylene insulation. This miniature coax cable comes with a black PVC jacket and bare copper braid shield (90% coverage). The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 7lbs Maximum recommended pulling tension
- 0.049µH/ft Nominal inductance
- 66% Nominal velocity of propagation
- 66.9Ω/ft at 20°C Nominal conductor DC resistance (DCR)
- -30 to 105°C Operating temperature range
Applications
Communications & Networking
Spécifications techniques
Coaxial Cable Type
RGMini
Conductor Area CSA
-
Reel Length (Imperial)
250ft
Jacket Color
Black
Conductor Material
Tinned Copper
External Diameter
1.37mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
28AWG
Impedance
32ohm
Reel Length (Metric)
76.2m
Jacket Material
PVC
No. of Max Strands x Strand Size
Solid
Product Range
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (10-Jun-2022)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
