9418 060100

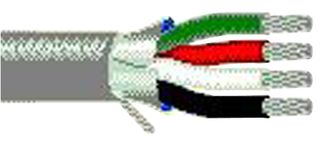

Multiconductor Cable, Audio Control, Shielded, 4 Conductor, 18 AWG, 100 ft, 30.5 m
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 621,670 $ |
| 5+ | 597,620 $ |
| 10+ | 577,020 $ |
Informations produit
Aperçu du produit
The 9418 060100 is a 100ft 4-conductor shielded Audio, Control and Instrumentation Cable with 18AWG stranded (19 x 30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminium foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 40pF/ft Conductor to conductor nominal capacitance
- 72pF/ft Conductor to other conductor and shield nominal capacitance
- 6.5Ω/1000ft at 20°C Nominal conductor DC resistance
- 8.5Ω/1000ft at 20°C Nominal outer shield DC resistance
- UL1685 FT4 Flame tested
Applications
Audio, Automation & Process Control, Sensing & Instrumentation, Signal Processing
Spécifications techniques
Shielded
18AWG
100ft
Chrome
Tinned Copper
6.223mm
-
4Conductor
-
30.5m
19 x 30AWG
PVC
300Vrms
No SVHC (10-Jun-2022)
