9504 060U100

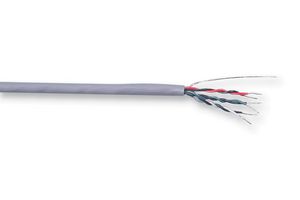

Multipair Cable, Computer, Shielded, 4 Pair, 24 AWG, 0.2 mm², 100 ft, 30.5 m
| Quantité | Prix |
|---|---|
| 1+ | 135,320 $ |
| 5+ | 130,080 $ |
| 10+ | 125,600 $ |
Informations produit
Aperçu du produit
The 9504 060U100 is a 100ft 4-pair 24AWG shielded Computer Cable with stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminium foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analogue data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.
- 30pF/ft Conductor to conductor nominal capacitance
- 50pF/ft Conductor to other conductor and shield nominal capacitance
- 24Ω/1000ft at 20°C Nominal conductor DC resistance
- 17Ω/1000ft at 20°C Nominal outer shield DC resistance
- UL1685 FT4 Loading flame tested
Applications
Computers & Computer Peripherals
Spécifications techniques
Screened
24AWG
98.43ft
Chrome
300V
Tinned Copper
-
4 Pair
0.2mm²
30m
7 x 0.2mm
PVC
6.73mm
No SVHC (10-Jun-2022)
