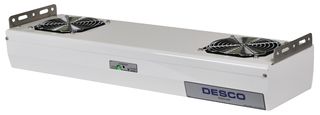

60640

The 60640 is a 2-fan US plug steady-state DC Overhead Ionizer designed for use in ESD protected areas. The Chargebuster® overhead ionizers discharge times (<lt/>3 seconds at 12 inches) and low offset voltage (±10V) meet the required limits of ANSI/ESD S20.20 <lt/>±35V tested per ANSI/ESD STM3.1 and ESD TR53. Its emitters are made of pure tungsten and spaced further apart to minimize ion recombination, increase discharge efficiency and provide a broader coverage area. It has 3 speeds (high, medium, low) which produce consistent performance at all 3 settings. It utilizes an auto-feedback system that continuously optimizes its performance and automatically alarms and shuts down should its supply voltage drop. Necessary non-conductors in the environment cannot lose their electrostatic charge by attachment to ground. Ionization systems provide neutralization of charges on these necessary non-conductive items (circuit board materials).

• Two 3-blade fan with steady state DC ionization for 2x4' coverage area
• Auto-feedback system (audible and visual alarm through single tri-colour LED)
• Field replaceable emitter pins allow for minimal downtime
• Compatible ionizer motion sensor 60509
• Powder-coated steel chassis
• Steady-state DC with sense feedback ion emission
• 400mA Slow blow fuse
• 5.5kVDC Nominal high voltage power supply
