BK/AGC-1-1/2-R

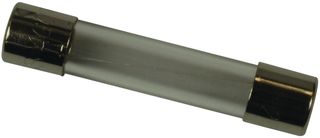

Fuse, Cartridge, Fast Acting, 1.5 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", AGC Series
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantEATON ELECTRONICS
Réf. FabricantBK/AGC-1-1/2-R
Code Commande48K9373
Gamme de produitAGC Series
Fiche technique
979 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
| Quantité | Prix |
|---|---|
| 1+ | 0,821 $ |
| 10+ | 0,779 $ |
| 25+ | 0,737 $ |
| 50+ | 0,695 $ |
| 100+ | 0,654 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
0,82 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantEATON ELECTRONICS
Réf. FabricantBK/AGC-1-1/2-R
Code Commande48K9373
Gamme de produitAGC Series
Fiche technique
Blow CharacteristicFast Acting
Fuse Current1.5A
Voltage Rating VAC250V
Fuse Size Metric6.3mm x 32mm
Fuse Size Imperial1/4" x 1-1/4"
Product RangeAGC Series
Breaking Capacity Current AC100A
SVHCNo SVHC (17-Jan-2022)
Aperçu du produit
The BK/AGC-1-1/2-R is a 1.5A Fast-acting Fuse with glass tube and nickel-plated brass end caps. The AGC fuse is an UL listed product, which meets the standard 248-14. Wide amp/volt ratings allow versatility of protecting electronic circuits.
- Fast-acting for maximum protection
- 0.115Ω Typical DC cold resistance
Applications
Automotive, Consumer Electronics
Spécifications techniques
Blow Characteristic
Fast Acting
Voltage Rating VAC
250V
Fuse Size Imperial
1/4" x 1-1/4"
Breaking Capacity Current AC
100A
Fuse Current
1.5A
Fuse Size Metric
6.3mm x 32mm
Product Range
AGC Series
SVHC
No SVHC (17-Jan-2022)
Documents techniques (1)
Produits de remplacement pour BK/AGC-1-1/2-R
2 produit(s) trouvé(s)
Produits associés
6 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (17-Jan-2022)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
Traçabilité des produits
