DRS-1215

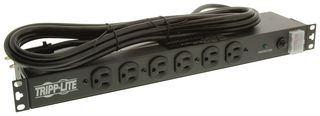

The DRS-1215 is a 14-outlet economy network Server Surge Protector with 1U rack-mount. This surge protector offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rack-mount, wall-mount and under-counter installation. This surge protector uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. It includes 14-outlets (6 front/8 rear), 15ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

• Versatile all-metal cabinet with detachable mounting flanges
• Allows rack-mount, wall mount, under counter and other creative mounting options
• Uses one rack space (1U) in standard 19" rack
• 3000J AC surge suppression with EMI/RFI filtering
• 14 NEMA5-15R output receptacles (6 front/8 rear)
• 15' AC cord with NEMA 5-15P straight-in plug connection
• Diagnostic LED confirms suppressor operation
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15A Capacity with circuit breaker

Applications

Communications & Networking, Audio, Security, Imaging, Video & Vision

Contenu

DRS-1215 Surge suppressor, Instruction manual.
