Flow Sensor, Compact, Low Flow Units, FS-3 Series, 0.25 gpm, NPT, 6.35 mm

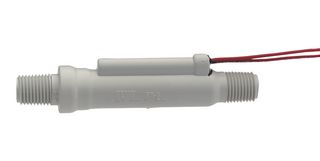

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 6 semaine(s)
Informations produit
FabricantGEMS SENSORS
Réf. Fabricant165841
Code Commande92C8721
Fiche technique
Sensor TypeFlow Switch
Flow Rate Min-
Flow Rate Max0.25GPM (US)
Operating Pressure Min50psi
Operating Pressure Max150psi
Supply Voltage Min-
Supply Voltage Max-
Media TypeLiquid
Process Connection Size1/4"
Process Connection TypeNPT Male
Pipe Size-
Sensor Mounting-
Operating Temperature Min0°C
Operating Temperature Max100°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit
165841 is a FS-3 series compact low flow unit for clean potable water applications. It is made primarily of NORYL®, with all other wetted materials also FDA or NSF compliant. This ultra compact switch has been specifically designed for reliable operation in clean post-filtered water. It is an instrument-quality, yet affordably priced for pure water equipment from UV lamp switching to filter life monitoring.
- 0.25GPM switch actuation set point for liquids
- 316 stainless steel spring and stop pin
- SPST, N.O. pilot duty 20VA, 120 to 240VAC or VDC switch
- 22AWG, 18˝ length, PVC lead wires electrical termination
- 1/4˝ male NPT port
- Maximum operating temperature range from 0°F to 212°F (100°C)
Spécifications techniques
Sensor Type
Flow Switch
Flow Rate Max
0.25GPM (US)
Operating Pressure Max
150psi
Supply Voltage Max
-
Process Connection Size
1/4"
Pipe Size
-
Operating Temperature Min
0°C
Product Range
-
Flow Rate Min
-
Operating Pressure Min
50psi
Supply Voltage Min
-
Media Type
Liquid
Process Connection Type
NPT Male
Sensor Mounting
-
Operating Temperature Max
100°C
SVHC
No SVHC (21-Jan-2025)
