51582

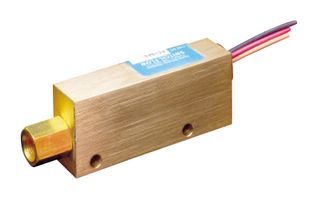

Flow Sensor, FS-930 Series, Oil Flow, 0.1 gpm, 1/4˝ NPT, 69 bar
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 5 semaine(s)
Informations produit
FabricantGEMS SENSORS
Réf. Fabricant51582
Code Commande02H3719
Fiche technique
Flow Rate Min0.1GPM (US)
Flow Rate Max1GPM (US)
Supply Voltage Min-
Supply Voltage Max-
Product Range-
Aperçu du produit
The 51582 is an Oil Flow Switch with unique, patented piston design assures accuracy within 20% over a full range of viscosities—from 40 to 2000SSU. It’s ideal for use in applications where liquids of different viscosities are blended; or for use in lubrication systems where oil flow monitoring is critical at start-ups. Switch compensates for viscosity changes automatically. Each unit is factory pre-set, using 300 SSU oil, for actuation at specified flow rates.
- 0.1GPM Flow rate settings
- Fixed setting type
- 1/4" NPT Inlet/Outlet ports
- Brass primary construction material
- 1000psi (69bar) Maximum operating pressure
- ±10% Set point accuracy
- 15% Maximum set point differential
- 20VA SPDT switch
- 18 AWG, 24" length, polymeric lead wires electrical termination
Applications
Sensing & Instrumentation, Industrial
Spécifications techniques
Flow Rate Min
0.1GPM (US)
Supply Voltage Min
-
Product Range
-
Flow Rate Max
1GPM (US)
Supply Voltage Max
-
SVHC
No SVHC (21-Jan-2025)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :À déterminer
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (21-Jan-2025)
