ORANGECRAB-R0D2-85

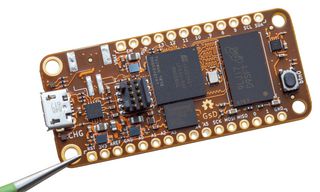

Development Board, Orange Crab, LFE5U-85F-8MG285C, ECP5 Family FPGA
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantGROUPGETS LLC
Réf. FabricantORANGECRAB-R0D2-85Copie
Code Commande25AJ2498
Votre numéro de pièce
Modèle arrêté
Informations produit
FabricantGROUPGETS LLC
Réf. FabricantORANGECRAB-R0D2-85Copie
Code Commande25AJ2498
Fiche technique
Silicon ManufacturerLattice Semiconductor
No. of Bits-
Silicon Family NameECP5
Core ArchitectureFPGA
Core Sub-Architecture-
Silicon Core NumberLFE5U-85F-8MG285C
Kit ContentsDevelopment Board LFE5U-85F-8MG285C
Product Range-
SVHCNo SVHC (19-Jan-2021)
Aperçu du produit
OrangeCrab is an electronics development board. It is FPGA based, featuring an ECP5 from Lattice. The board follows the slim feather board specification from Adafruit. The FPGA is compatible with the opensource toolchain and is perfect for experimenting with RISC-V and other softcore SoCs.
- Lattice ECP5 FPGA csfBGA285 package(LFE5U-85F-8MG285C)
- On-board DDR3L memory
- Direct USB-C connection to the FPGA
- FPGA based full-speed (12Mbit) USB
- 512Mbit QSPI FLASH memory
- MicroSD socket
- High efficiency DCDC for main supplies, battery charger (100mA), lipo battery connector (PH type)
- 48MHz on-board oscillator
- User I/O(1x button, 1x RGB LED, 20x I/O on 0.1" headers, 6x analogue compatible)
- Dimensions: 22.86mm x 50.8mm (0.9" x 2.0")
Spécifications techniques
Silicon Manufacturer
Lattice Semiconductor
Silicon Family Name
ECP5
Core Sub-Architecture
-
Kit Contents
Development Board LFE5U-85F-8MG285C
SVHC
No SVHC (19-Jan-2021)
No. of Bits
-
Core Architecture
FPGA
Silicon Core Number
LFE5U-85F-8MG285C
Product Range
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :À déterminer
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (19-Jan-2021)
