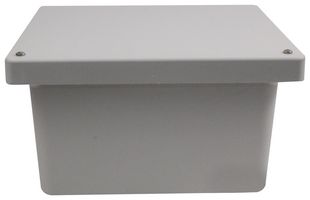

PJ1086H
Plastic Enclosure, Hinged Door with Screws, Junction Box, Fiberglass, 257.3 mm, 210 mm, 156 mm
| Quantité | Prix |
|---|---|
| 1+ | 176,410 $ |
| 5+ | 154,350 $ |
Informations produit
Aperçu du produit
The PJ1086H is a type-4X Junction Box made of polyester. This PJ-series designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments. Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled. 10-32 threaded brass inserts are provided for inner panel or terminal kit mounting, mounting hardware included. Cover is fastened with captive stainless steel screws in threaded brass inserts.
- Enhanced UV inhibitors to protect against outdoor weathering
- Captive oil resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets & hardware provided for mounting feet to the rear of enclosure
- -40 to 130°C Operating temperature range
- Impact index of 6.78J
Applications
Industrial
Spécifications techniques
Junction Box
257.3mm
156mm
Gray
10.1"
6.13"
No SVHC (21-Jan-2025)
Fiberglass
210mm
IP66
NEMA 1, 2, 3, 4, 4X, 12, 13
8.3"
-
Documents techniques (1)
Produits associés
1 produit trouvé
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
