166-90109
Conduit Connector, HelaGuard, 45 Degree, 1/2 ", Nylon 6.6 (Polyamide 6.6), Black, 61 mm, IP68
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 50,090 $ |
| 5+ | 50,090 $ |
| 10+ | 50,090 $ |
| 25+ | 50,090 $ |
| 50+ | 50,090 $ |
| 100+ | 50,090 $ |
| 250+ | 50,090 $ |
Informations produit
Aperçu du produit

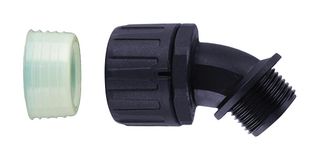

The 166-90109 from HellermannTyton is a 45°-elbow HelaGuard non-metallic IP68 conduit fitting with NPT thread, 0.5" diameter and has an additional conduit seal for increased protection against wind, dirt and water. Features a snap-on design that provides a secure connection and reduces installation time and costs by eliminating need to thread fittings onto conduit. Constructed of a durable black polyamide 6.6 (nylon 6.6) material that has high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. Fits HelaGuard non-metallic conduits and tubing.
- IP68 fitting has additional conduit seal for increased protection against wind, dirt and water
- 45° Elbow features a smooth, swept bore to ease cable installation
- All-around "teeth" attach firmly to conduit and deliver a high extraction force
- External NPT thread provides a secure connection
- Length is 61mm, bore diameter is 14mm
- Trade size 1/2 "
- UL94V2 flammability rating
- Operating temperature range from-50°C to +135°C
- UL recognized
Applications
Industrial
Contenu
10 per pack.
Spécifications techniques
45 Degree
Nylon 6.6 (Polyamide 6.6)
61mm
HelaGuard Series
1/2"
Black
IP68
