Imprimer la page
90 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 50,300 $ |
| 5+ | 46,750 $ |
| 10+ | 43,190 $ |
| 25+ | 41,680 $ |
| 50+ | 40,960 $ |
| 100+ | 39,930 $ |
| 10000+ | 35,380 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
50,30 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | HONEYWELL |
|---|---|
| Réf. Fabricant | BZ-RW8435-A2Copie |
| Délai d’approvisionnement standard du fabricant | 14 semaines |
| Code Commande | 23F4062 |
| Gamme de produit | BZ Series |
| Fiche technique | |
| Microswitch Type | Standard |
| Microswitch Actuator | Straight Lever |
| Contact Configuration | SPDT |
| Switch Terminals | Screw |
| Contact Current Max | 10A |
| Contact Voltage DC Nom | - |
| Product Range | BZ Series |
| Contact Voltage AC Nom | 480V |
| Operating Force Max | 7gf |
| SVHC | No SVHC (07-Jul-2017) |
Aperçu du produit

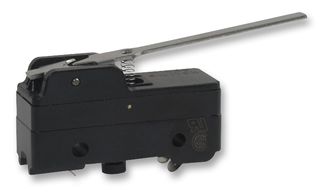

The BZ-RW8435-A2 is a single-pole double-throw (SPDT) Basic Switch with a straight lever actuator and silver contacts. This MICRO SWITCH™ BZ series plastic basic switch comes with a general purpose phenolic housing and supports screw termination. It features elongated mounting hole for easier, more accurate mounting and accepted world-wide standard "Large Basic" switch. It is used for simple or precision on/off application needs, as well as end of limit, presence/absence and manual operator interface functions.
- Low operating force and differential travel
- Long mechanical life up to 20000000 cycles at 95% survival
- -55 to 85°C Operating temperature range
Applications
HVAC, Medical, Test & Measurement, Automotive
Spécifications techniques
| Microswitch Type | Standard |
|---|---|
| Contact Configuration | SPDT |
| Contact Current Max | 10A |
| Product Range | BZ Series |
| Operating Force Max | 7gf |
| Microswitch Actuator | Straight Lever |
|---|---|
| Switch Terminals | Screw |
| Contact Voltage DC Nom | - |
| Contact Voltage AC Nom | 480V |
| SVHC | No SVHC (07-Jul-2017) |
Documents techniques (3)
Produits de remplacement pour BZ-RW8435-A2
1 produit trouvé
Produits associés
5 produit(s) trouvé(s)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Y-Ex RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (07-Jul-2017) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
| Traçabilité des produits |
